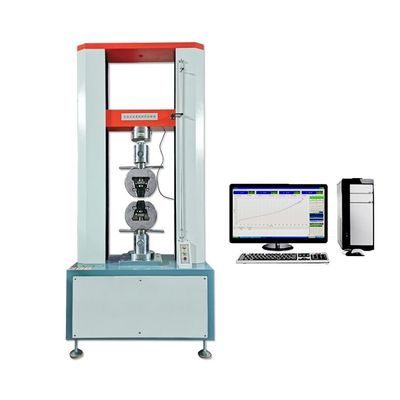

100KG 500KG UTM Tension Compression Peel Strength Universal Tensile Testing Machine
Main Functions
This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise specimen measurement.
Applicable Industries
Widely used in quality control across multiple industries including:
- Rubber & Plastics
- Metallurgical iron and steel
- Manufacturing machinery
- Electronic equipment
- Automobile production
- Textile fiber
- Wire and cable
- Packaging materials and foodstuffs
- Medical equipment
- Civil aviation
- Research laboratories
- Technical supervision departments
- Petroleum & Chemical industries
Corresponding Standard
GB/T16491-1996 electronic universal testing machine
Technical Parameters
| Model |
ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
| Max load |
5KN,10KN, 20KN, Can be customized |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor |
Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width |
390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke |
800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed |
0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system |
Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation |
Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety |
Electronic-limit protection |
| Testing platform moving device |
Fast/slow two speeds to control, can jog |
| Return back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%, automatic protection |

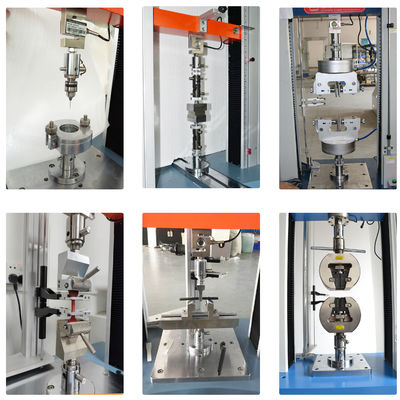

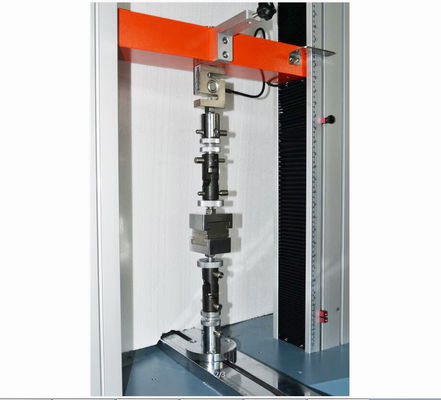

| Fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm (length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V, 50HZ |
| Power |
0.4KW (depending on different demand of force, using different motor) |
| Machine weight |
(about) 250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged |
Equipment Summary
Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high precision for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is ideal for production line quality control, primarily for testing non-metallic and metallic materials with loads less than 2 tons.
Testable Items
The computer servo testing machine can measure and calculate:
- Tensile stress
- Tensile strength
- Rate of elongation at break
- Fixed stress
- Rate of stress at break
- Stress strength
- Tear strength
- Value of force at any point
- Rate of elongation at any point
- Pull-out strength
- Force of adhesion and peak force
Main Features
Features include:
- Photoelectric encoder for displacement measurement
- Embedded single-chip microcomputer controller with multifunction software
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus
- Recording of maximum points, breaking points, and designated values
- Computer display of dynamic testing curves
- Post-test data analysis and curve editing
- Report printing capabilities
Software Features
- Standard modular functions covering GB, ASTM, DIN, JIS, BS testing standards
- Product information data setting with permanent storage
- Dual-report editor with customizable formats
- Unit conversion for length and force measurements
- Automatic graphic scale optimization
- EXCEL format output capability
- Automatic or manual test result preservation
- Comprehensive calculation of material properties
- Data storage on any disk
- Historical data output capability
Frequently Asked Questions
1. How to choose the most suitable Mechanical Equipment?
Our professional team will provide recommendations based on your testing requirements and specifications.
2. What's the delivery term?
Typically 15-20 working days after deposit receipt. Urgent orders can be specially arranged.
3. Do you accept customization service?
Yes, we offer both standard and customized machines according to your requirements.
4. Can we visit your factory before order?
Yes, we welcome factory visits and can assist with travel arrangements.
5. Do you have customers in our country?
Our machines have been sold to over 80 countries worldwide.
6. How about your warranty?
Two-year warranty with technical support and parts replacement.
7. How about the packing for machine?
Standard export wooden boxes ensure safe transportation by sea or air.
8. What is the order process?
Inquiry → quotation → communication → order confirmation → deposit payment → production → testing → balance payment → packing → delivery → customer receiving → after service.
9. How to install and use the product?
English operating instructions and video are provided with the product.
