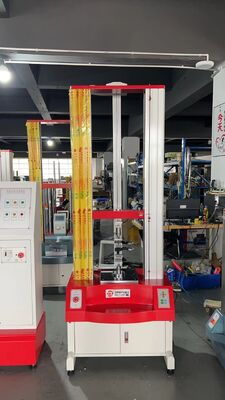

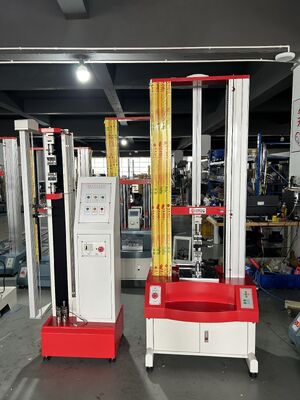

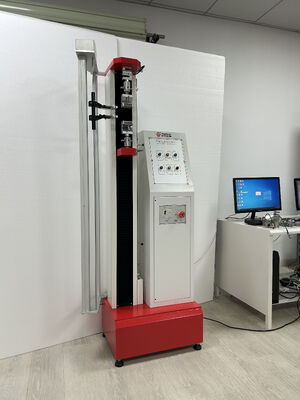

Automatic Spring Compression & Tension Tester
Large Capacity Test Machine for Compression & Extension Springs
Product Description
Application
The Spring Compressed and Tension Tester is designed according to national standards for spring tension and compression testing machines. Featuring an automatic control and data acquisition system, it provides full digital adjustment for data collection and control processes. Suitable for testing various springs including pressure springs, disk springs, leaf springs, gas springs, and custom-shaped springs, it performs precise tension, pressure, displacement, stiffness, and strength tests.
Technical Indicators
| Parameter |
Specification |
| Product Name |
Spring Compressed and Tension Tester |
| Style |
Door type |
| Maximum Test Force |
10KN, 20KN, 50KN, 100KN |
| Range |
2%-100% |
| Testing Force Accuracy |
±1% |
| Displacement Resolution |
0.01mm |
| Displacement Measurement Accuracy |
±1% |
| Stretching Stroke |
650mm (increases) |
| Compression Stroke |
650mm (increases) |
| Test Trip |
650mm (increases) |
| Displacement Speed Control Range |
1mm/min ~ 300mm/min (100KN 1-200mm/min) |
| Displacement Velocity Control Accuracy |
±1% |
| Level |
Level 1, testing machine |
| Deformation Shown Value Error |
less than (50+0.15L) um |
| Size of the Test Machine |
760*400*1700 mm |
| Appearance |
Meets requirements of GB/T2611 |
| Complete |
Meets standard requirements |
| Protection Function |
Overload protection |
| Power Supply |
220V, 50Hz |
| Weight |
350KG |
Function Introduction
- Automatic calibration of indication accuracy
- Automatic calculation of force displacement values
- Automatic range switching for measurement accuracy
- Real-time display of test force, peak, and test status
- Automatic completion of test processes
- Automatic stop when specimen fractures
- Two-level limit protection (machine and programmable)
System Configuration
- Special tensile/compression set (with assistive devices)
- Domestic servo motor and servo control system
- Precision reducer
- High precision load sensor
- Single chip microcomputer control system
Related Products

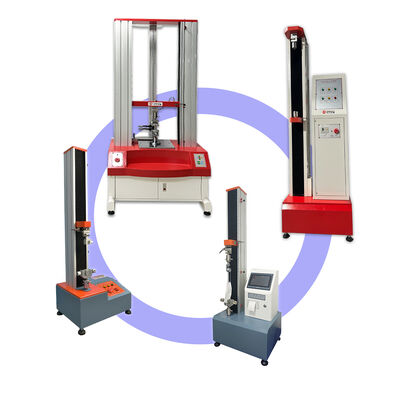

We can produce all spring test machines:
